Spcial Equipment Transporter

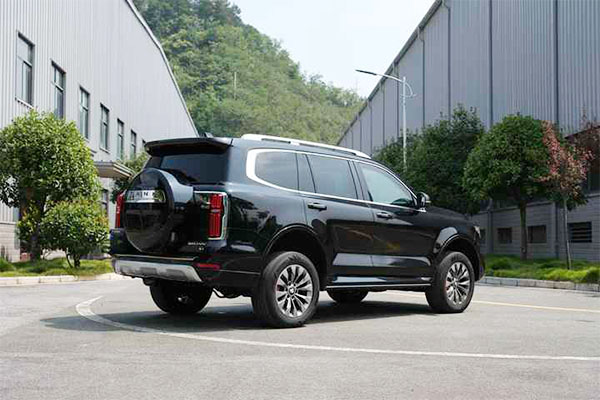

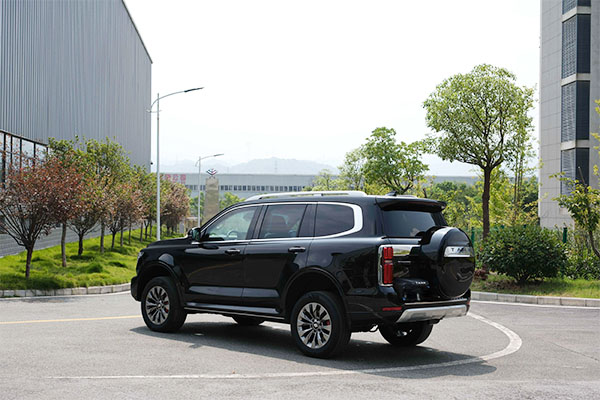

NRD TANK500 escort vehicleThe series features 360° all-round protection and upgraded safety technology. Cooperate with domestic and foreign high-horsepower off-road vehicles and pickup trucks, and also provide internal protection upgrading and industrialization services.
-
Parameter configuration
Drive form: 44
Vehicle model: NRD TANK500 escort vehicle
Engine: gasoline + 48V light mixing system
Chassis model: Great Wall TANK500 Class I
Emission standard: State-6 b
Engine model: E30Z
Total mass: 3,600 kg
Length, width and height: 5070 * 1934 * 1905mm
Preparation mass: 3,200 kg
Body form: non-bearing type, stealth armor
Transmission: 9AT hand self-integration
Number of passengers: 5 seats
Front suspension: double fork arm independent suspension
Wheelbase: 2,850 mm
Rear suspension: the integral bridge is not an independent suspension
Wheel pitch: 1,635 mm between front and rear
Brake: ventilation disc type, with ABS
Drive form: front-facing four-wheel-drive
Top speed: 180 km/h
Minimum ground clearance: 224mm
Rated power: 265kW
Maximum torque: 500N-m
Tire: 265 / 60 R18
Electrical system: 12V
